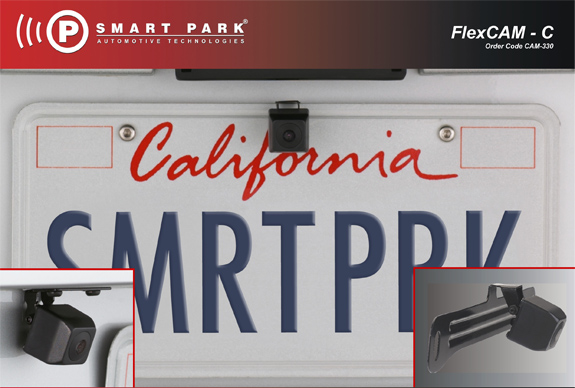

The SmartPark FlexCAM-C is a revolutionary design that combines the highest quality digital imaging technology with the smallest possible form

factor.

The system uses a high quality 160 degree glass lens for a crisp, wide view. The CAM330 also includes multiple mounting systems to give you a

range of different options when installing.

The FlexCAM can be used in conjunction with any of the Smart Park LCD screens or the image can be seen on the factory navigation screen using

a Smart Park Display Interface Module. It also incorporates a built in microphone so the driver can hear any sounds from the viewing area.

All Smart Park products are made from the highest quality components to exacting ISO/TS16949 and ISO9001 standards.

Developed by Zorg Industries Australia, Smart Park™ collision avoidance and vehicle integration products are readily adaptable to suit both OEM

and aftermarket requirements. For more exclusive automotive technology products, please visit our website atwww.atkinsoninstalls.com.au

• Extremely compact design.

• Built in microphone.

• Multiple, Adjustable mounting systems

• High Resolution Digital Imager

• 160 Degree High Quality Lens

• Fits any vehicle

• 100% Waterproof (IP68 Tested)

• Mirror/Normal Switch

• Three Year Warranty

Effective Pixel Resolution NTSC 510 x 492

Image Sensor 1/4” OV7950 Digital

Lens 160° Wide Angle

S/N (dB) Better than 48dB

Operating Temperature Range -22°F to 158°F

Illumination (min.) 1.0 Lux

Video output 1Vp-p (75ohm)

Voltage (V) DC12

Power consumption Max. 200mA

Additional Specifications Automatic Exposure/Gain Control

Self diagnostic controller Auto White Balance

Aperture & Gamma Correction
